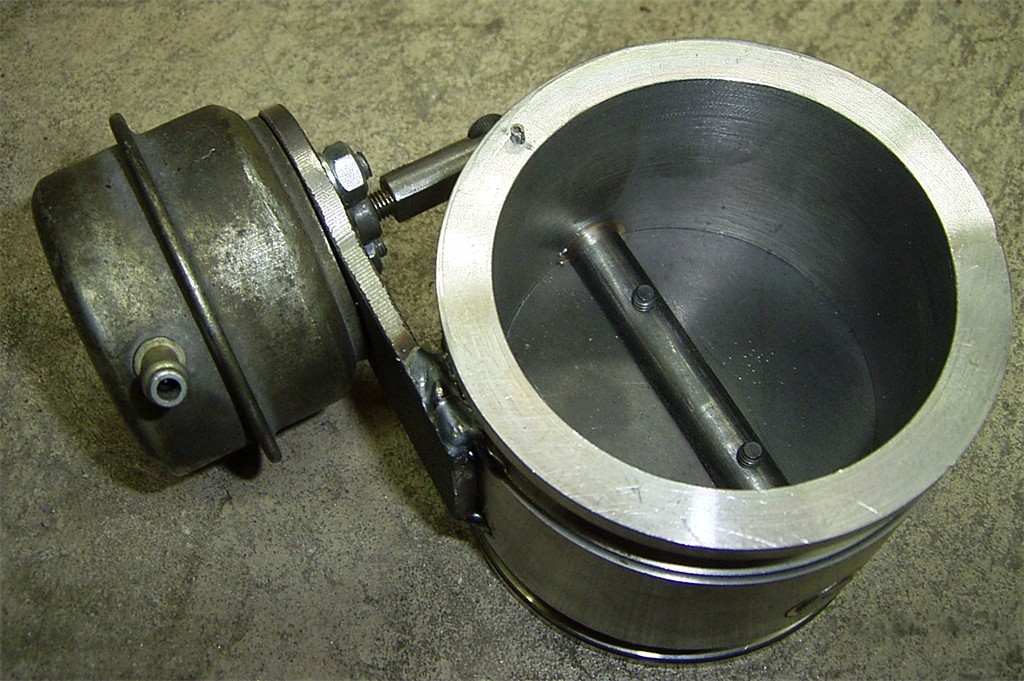

Canfield Industries boost controlled exhaust dump (click picture to enlarge)
|
|
| The valve is controlled by boost signal using a Garrett
wastegate actuator.

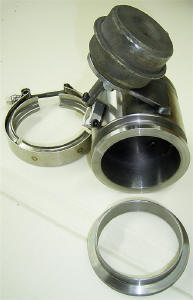

The assembly comes with everything you see in the picture; CNC machined, mild steel valve body with high temp bushings for the butterfly shaft, 3" SS V-band clamp, 3" weld on V-band end, and actuator. The kit will also come without the actuator if you have your own. |
| Install pictures |
|
|
|
|

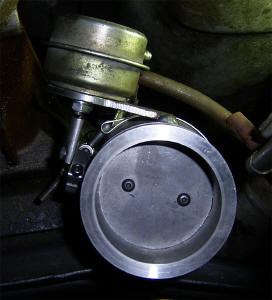

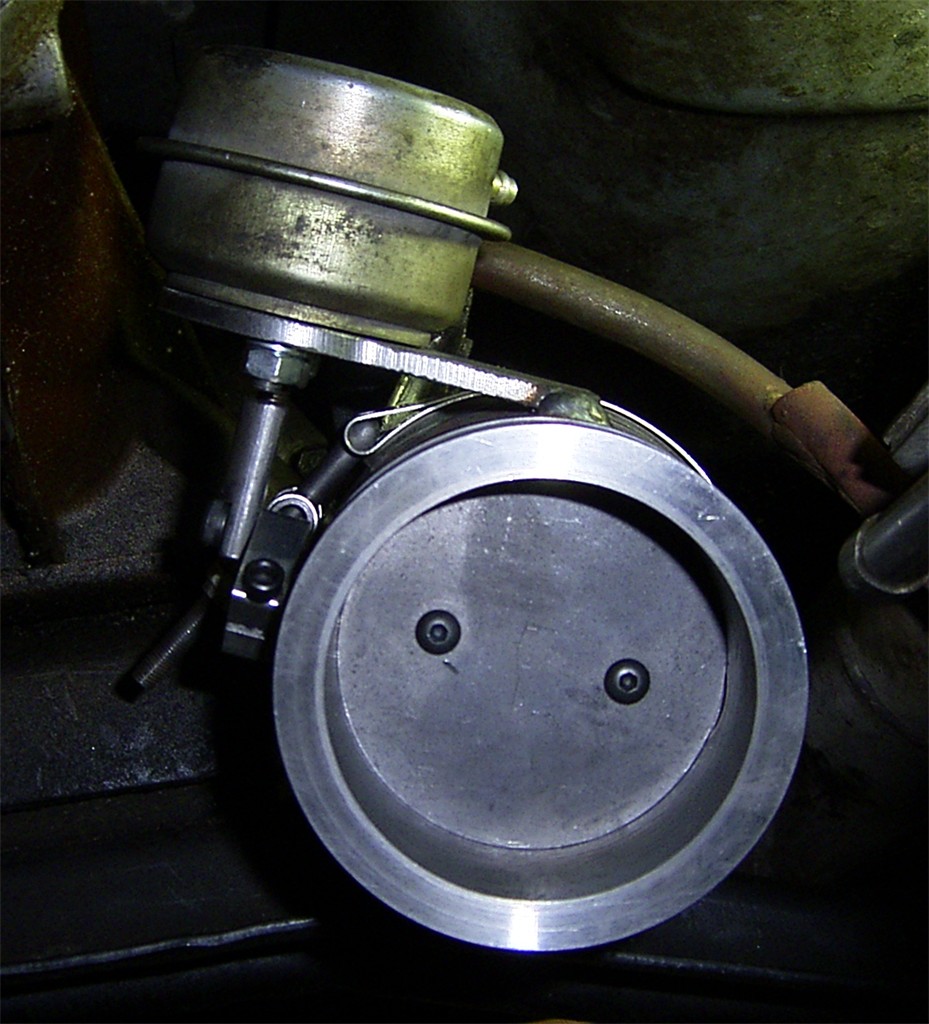

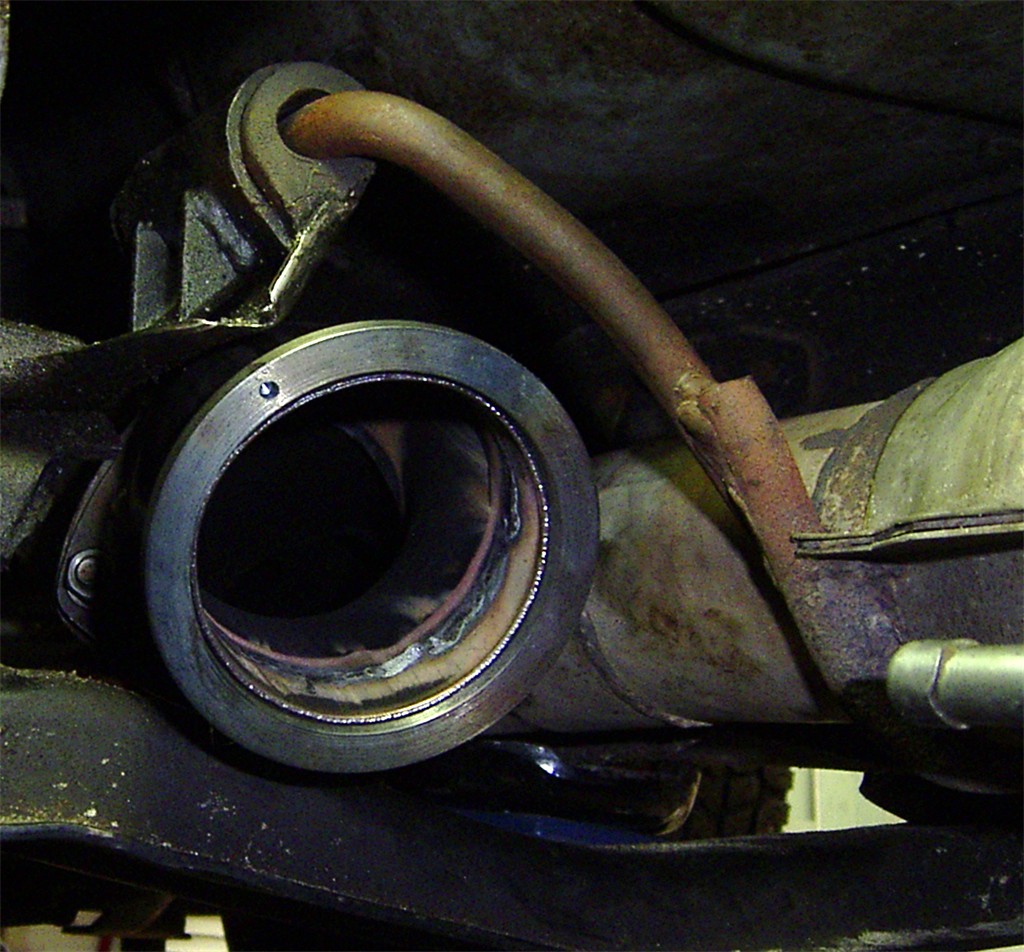

| I drilled a hole in the valve body and installed a small roll pin to keep everything in place when installed. I am using 3" stainless Y pipe from Jegs that connects to my main exhaust. |
|
|

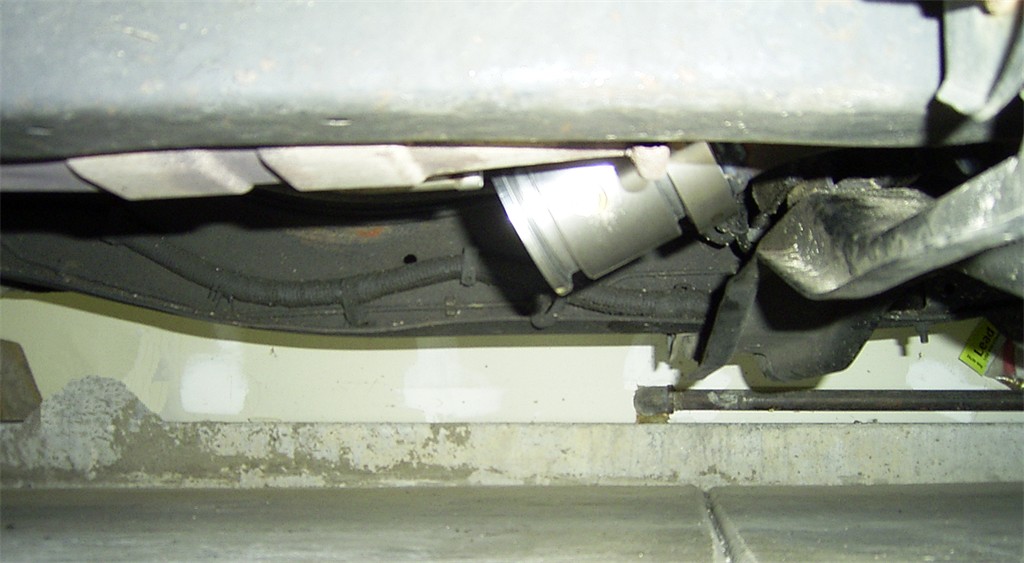

| View from side of truck |
|
|
|
|

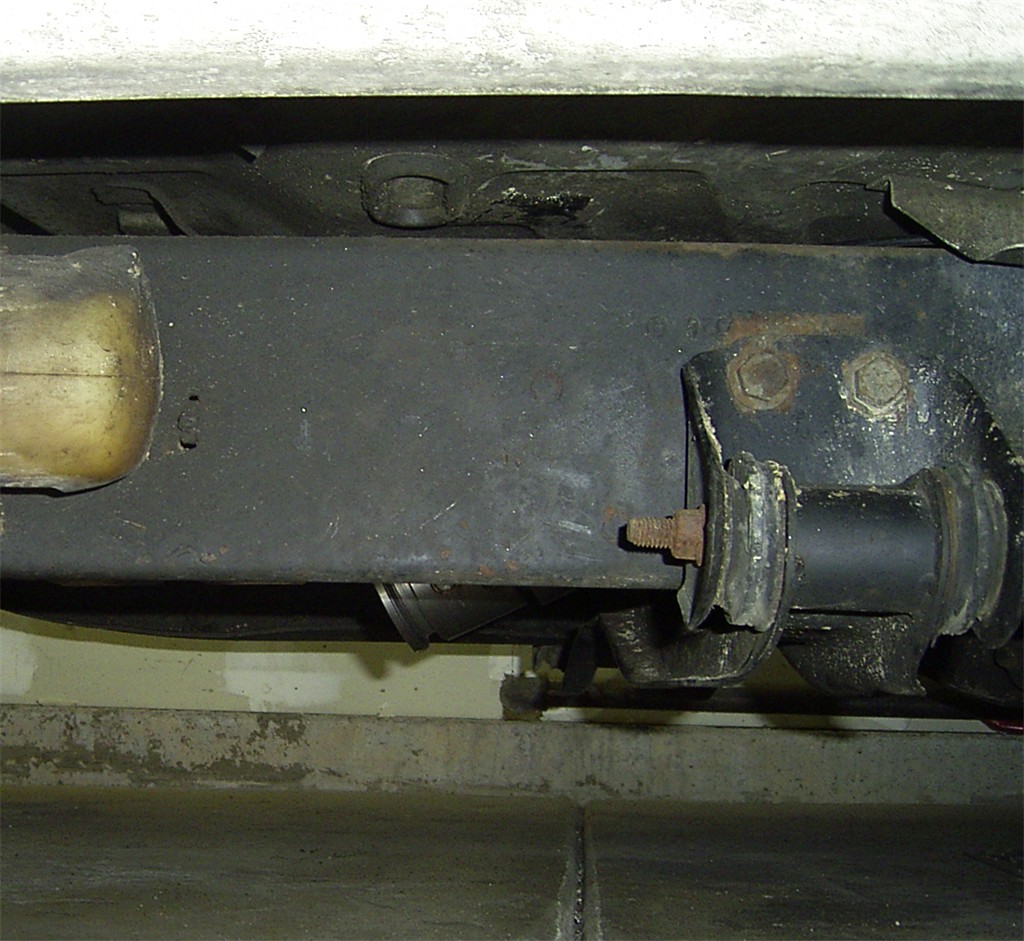

| The valve assembly is hardly noticeable from the side of the truck. It is perfectly quiet thanks to the precision CNC machining on the butterfly valve. I hooked up the valve to a source on the intake manifold. |
