Tuning runs

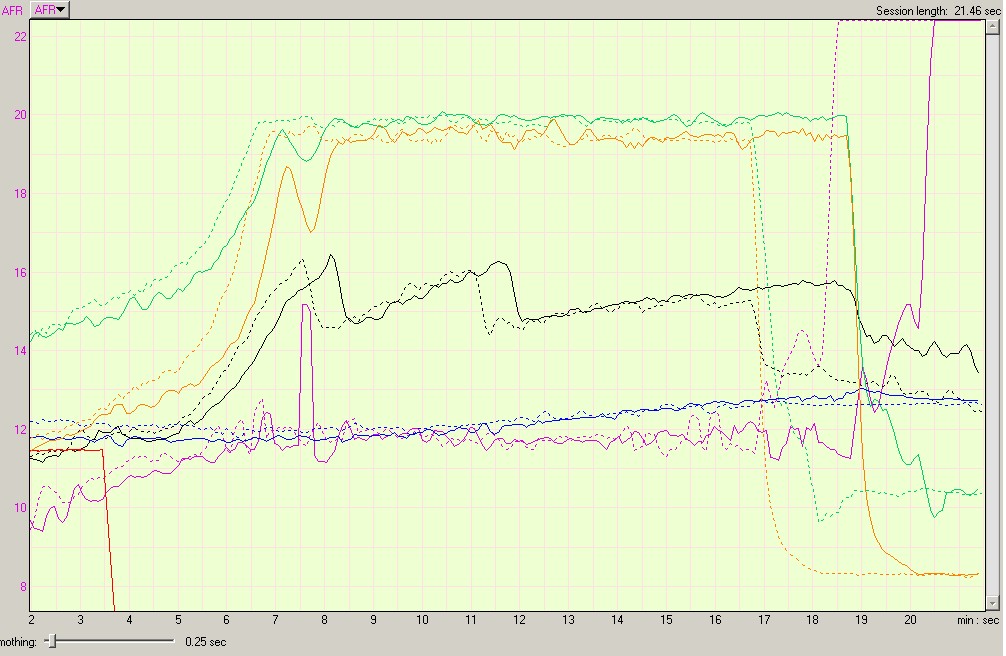

Solid lines are second run. Overlay (dashed lines) are first round. I aligned both runs based on the release of the trans brake.
Legend

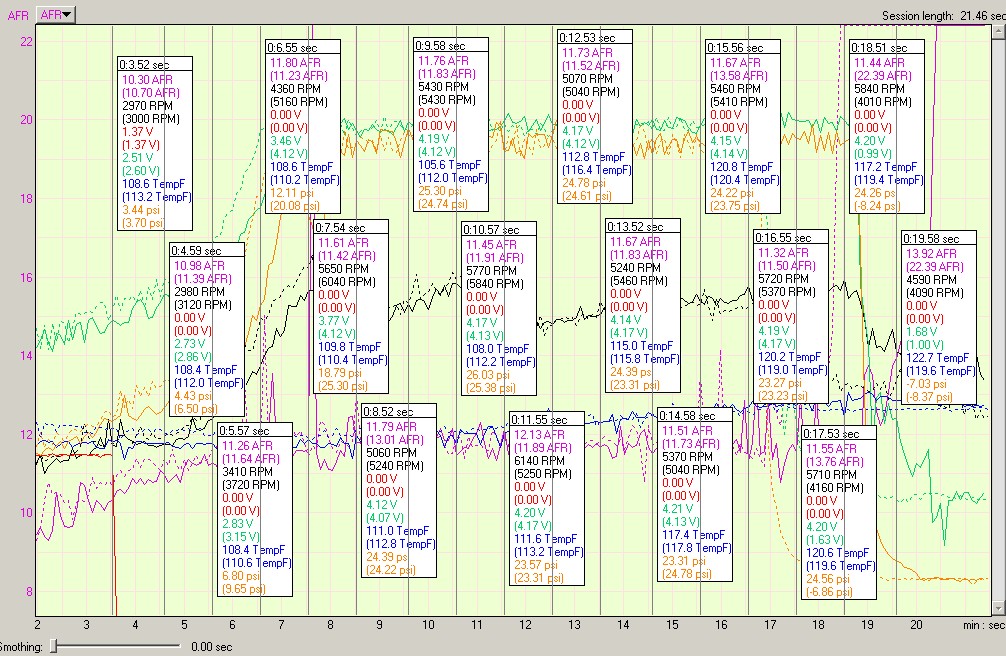

Combined runs at 1 second clips

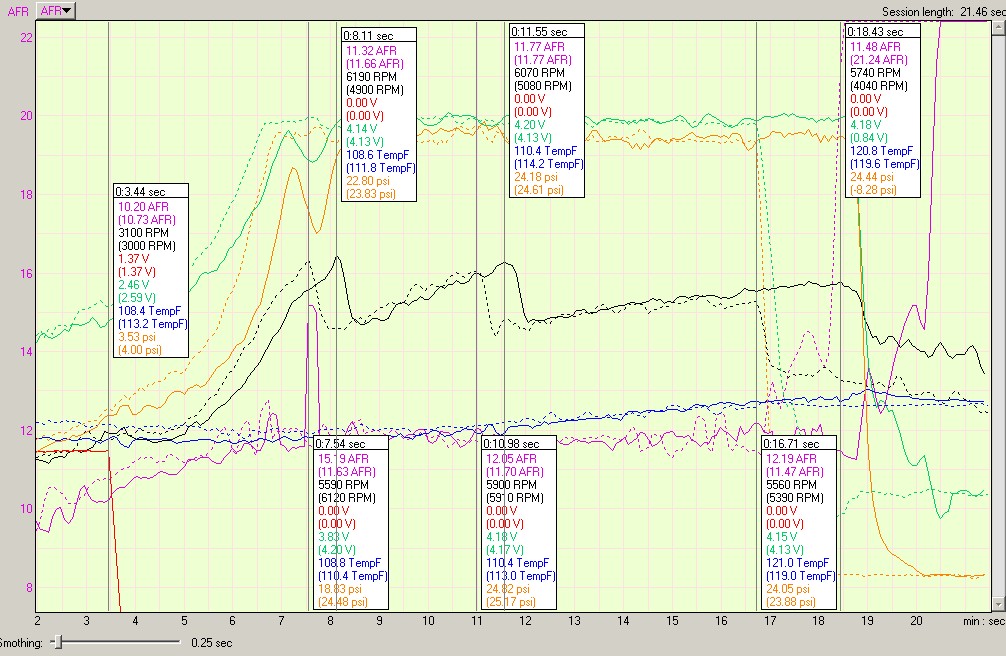

Combined runs at shift points
Raw graph
AFR number crunch
| VAF (V) | Average AFR | number of datapoints | % of total |
| 1.7 | 12.32 | 2 | 0.5% |
| 1.8 | 12.44 | 33 | 7.6% |
| 1.9 | 12.73 | 3 | 0.7% |
| 2 | 12.26 | 3 | 0.7% |
| 2.1 | 11.41 | 2 | 0.5% |
| 2.2 | 10.70 | 7 | 1.6% |
| 2.3 | 10.30 | 12 | 2.8% |
| 2.4 | 9.74 | 9 | 2.1% |
| 2.5 | 10.34 | 19 | 4.4% |
| 2.6 | 10.65 | 14 | 3.2% |
| 2.7 | 10.91 | 17 | 3.9% |
| 2.8 | 11.23 | 7 | 1.6% |
| 2.9 | 11.18 | 10 | 2.3% |
| 3 | 11.12 | 4 | 0.9% |
| 3.1 | 11.34 | 6 | 1.4% |
| 3.2 | 11.61 | 4 | 0.9% |
| 3.3 | 11.42 | 1 | 0.2% |
| 3.4 | 11.63 | 6 | 1.4% |
| 3.5 | 11.71 | 1 | 0.2% |
| 3.6 | 11.28 | 3 | 0.7% |
| 3.7 | 11.83 | 1 | 0.2% |
| 3.8 | 12.17 | 5 | 1.2% |
| 3.9 | 11.58 | 7 | 1.6% |
| 4 | 11.08 | 3 | 0.7% |
| 4.1 | 11.66 | 111 | 25.6% |
| 4.2 | 11.69 | 133 | 30.6% |
| 4.3 | 11.62 | 11 | 2.5% |
Download the .log file here to use with Log Works
